HugBolt
Bolts for temporary construction that can be used again and again
 |
|---|
 |
 |
 |
 |
Environmentally Friendly.
Reduce costs at the same time!
HugBolt products have been developed specifically for temporary construction.
They are convenient for workers at worksites. They boost work efficiency and increase the speed of construction.
We recommend giving HugBolt products a try.
Features of HugBolt
1）Large screw-thread pitch
The pitch is twice that of standard products. This means that bolts can be tightened with half the number of rotations, so work can be completed more quickly.
2）Screw thread
The screw thread angle is 90 degrees and the edges are rounded. As a result, the screws are resistant to scratches and can be used again and again. This contributes to eco-friendliness.
3）Size markings
The sizes are printed on the heads of the bolts, so the identification of sizes is easy.
4）Innovative idea for increasing user-friendliness
The bolt heads of M20 and M22, which are frequently used, have been made the same size. This means that a single tool can be used for both bolts.
Also, the different sizes have been given different plating colors in order to further increase user-friendliness.
5）Quality
In the case of HugBolt products, the mechanical properties of each production lot are inspected. (Inspection result documents can be provided.)
■Option：Nut stopper for HugBolt
●Prevents the nut from falling off due to vibration or forgetting to tighten when transporting the set HugBolt for a long distance.
●NAS type screw loosening test (NAS3350 compliant) 30,000 cycle (17 minutes) clear
Video explaining the features of HugBolt
Specifications
■Dimenstions
Property class:
4.8 (Nut Property class 5)
Surface finishing:
Bright chromate conversion coatings
(M16, M22, M24)
Colored chromate conversion coatings
(M20, W22)

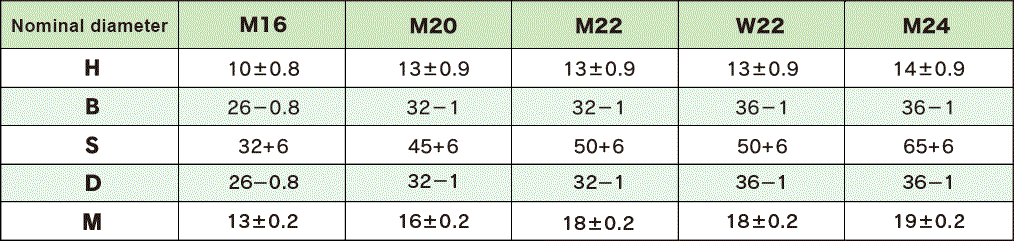

■Dimension table
■Quantity table
Please contact us via email form.
